Product

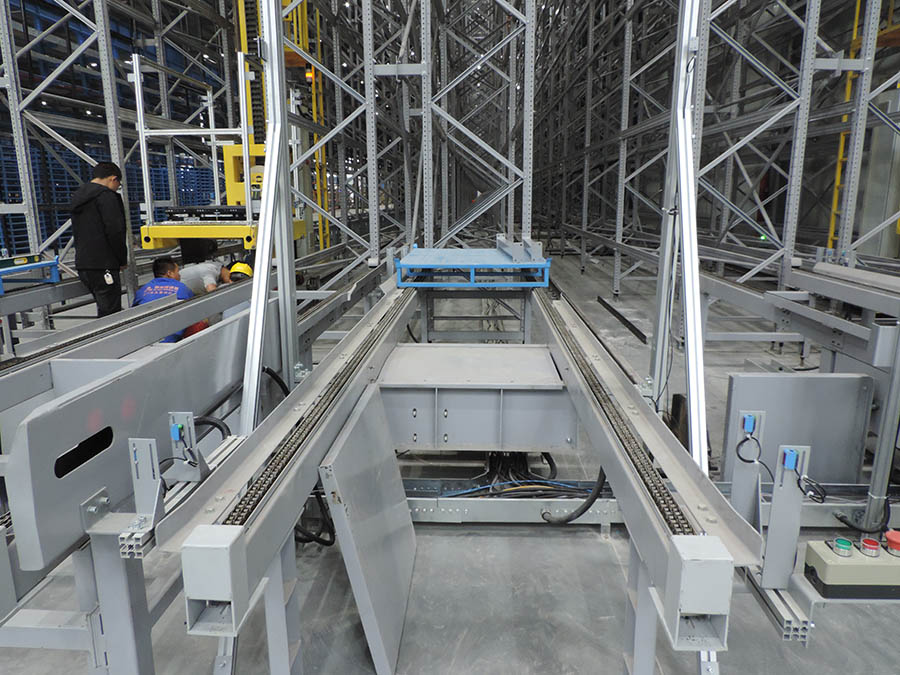

Chain Conveyor
Chain conveyors are a commonly used pallet conveying device in conveying systems. Chain conveyors utilize chains as both traction and load-bearing tools. When the chain moves under the drive of the sprocket, it carries the pallets on the chain to move horizontally.
Chain conveyors have advantages such as compact and simple structure, large load-bearing capacity, high transmission efficiency, and good wear resistance, and are widely used in logistics systems.
Chain Conveyor
Application
Chain conveyors are a common type of tray transport equipment used in conveyor systems. Chain conveyors utilize chains as both the traction and load-bearing components. As the chain moves under the drive of the sprockets, it carries the trays on top of it horizontally.
Chain conveyors have advantages such as compact and simple structure, large load capacity, high transmission efficiency, and good wear resistance, and are widely used in logistics systems.
Description
| Serial Number | Project Name | Technical Parameters |
| 1 | Rated Load | 100~2500kg |
| 2 | Operating Temperature | Based on customer environment, typically in cold storage: -40℃ to -10℃; normal temperature -10℃ to 40℃ |
| 3 | Number of Conveyor Chains | Two chains/Three chains |
| 4 | Tray Specification | Tray: According to customer design; standard is 1000mm x 1200mm |
| 5 | Conveyor Speed | 0-16m/min, variable frequency speed control, positioning accuracy ±5mm |
| 6 | Noise Control | ≤70 decibels |
| 7 | Standards Used | China National Standards (GB), Ministry of Machinery Industry Standards (JB) |
