Product

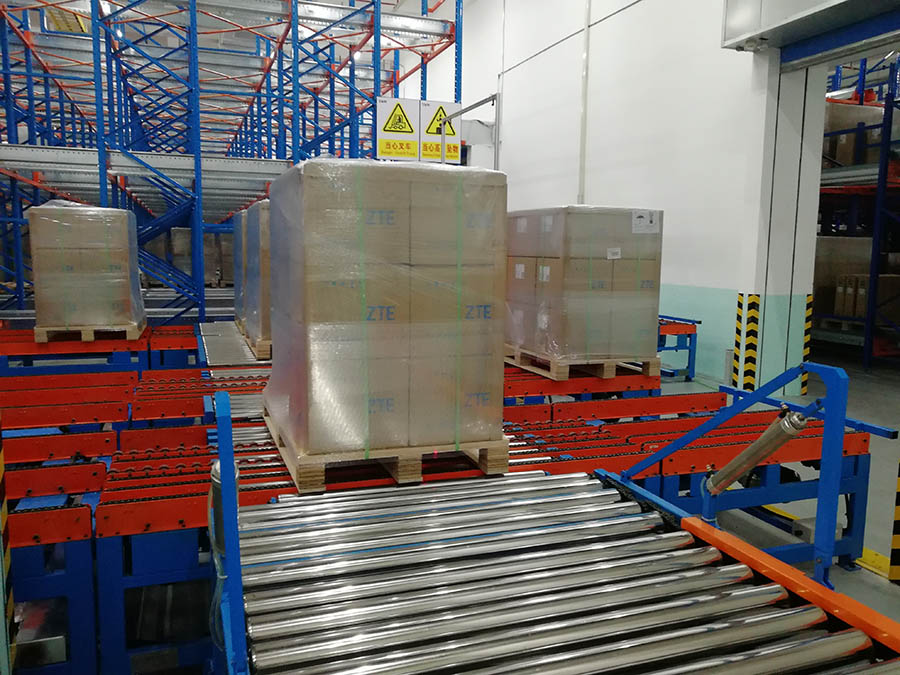

Roller Conveyor
Roller conveyors are commonly used pallet handling equipment in conveying systems. Roller conveyors use sprockets and chains to transmit motor power to the rollers, which in turn drive the pallets to move horizontally.
Roller conveyors are widely used in logistics systems due to their simple structure, adjustable continuous transport length, high standardization, and large load-bearing capacity.
Roller Conveyor
Application
Roller conveyors are a common type of pallet conveying equipment in conveyor systems. Roller conveyors use sprockets and chains to transmit motor power to rollers, which then rotate to move pallets horizontally.
Due to their simple structure, adjustable continuous transport length, high standardization, and large load-bearing capacity, roller conveyors are widely used in logistics systems.
Description
| Serial Number | Item Name | Technical Parameters |
| 1 | Rated Load | 200~1500kg |
| 2 | Conveyor Type | Roller |
| 3 | Operating Temperature | According to customer environment, usually in cold storage: -40℃ to -10℃; normal temperature -10℃ to 40℃ |
| 4 | Pallet Specification | Pallet: According to customer requirements; conventional size is 1000mm x 1200mm |
| 5 | Conveyor Speed | 0-16m/min, variable frequency speed regulation, positioning accuracy ±5mm |
| 6 | Noise Control | ≤70 decibels |
| 7 | Control Method | Manual, single-unit automatic, and online automatic control methods |
| 8 | Standards Used | China National Standards (GB), Ministry of Machinery Industry Standards (JB) |
